Bộ xử lý tín hiệu hình ảnh LED Colorlight X7

Name

Function

LCD

Display operation menu and system information

Knob

Select an item or adjust the parameter, press the knob to confirm your selection or adjustment.

Function Keys

. OK: Confirm button.

. ESC: Exit the current operation or back to the previous menu.

. BRIGHT: Tune brightness.

. PART: Crop Screen.

. MODE: Select a preset.

. 1~4:Quick selection of preset.

Selection Keys

DVI 1/DVI 2/HDMI/SDI: Video source selection.

Power button

Switch On/ Off.

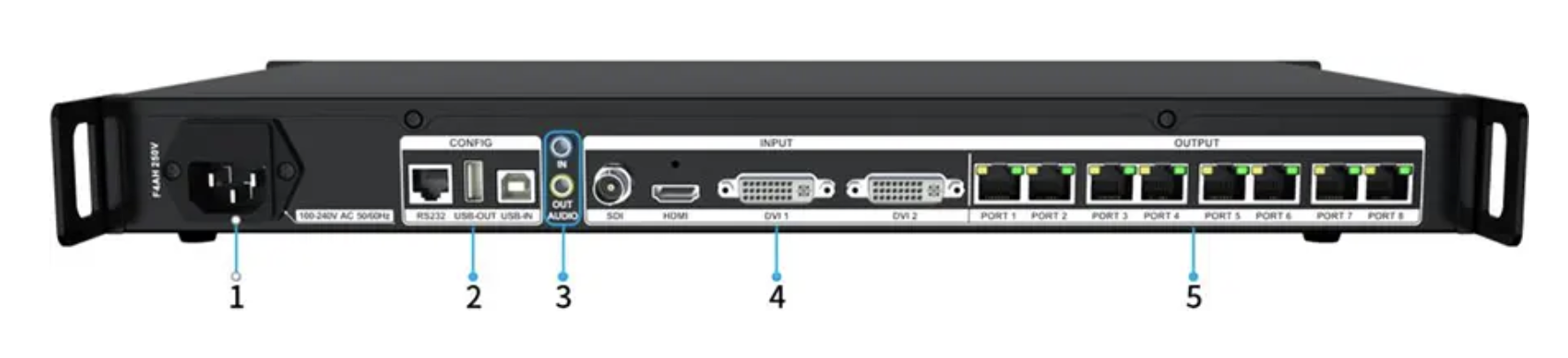

4. Input

DVI1,DVI2

2×DVI input.

HDMI

1×HDMI1.4 input.

SDI

1×SDI input,support 3G-SDI standard andde-interlacing.

5. Output

PORT 1-8

RJ45, 8×1G Ethernet ports output.

2. Control

RS232

RJ11port(6p6c), connect to the third-party device.

USB IN

USB input, which connects with the PC to configure parameters.

USB OUT

USB output, cascading with the next controller.

3. Audio

AUDIO IN

. Interface type: 3.5mm.

. Receive audio signals from computers or other audio sources.

AUDIO OUT

. Interface type: 3.5mm.

. Support HDMI audio decoding and output audio signals to devices such as active speakers.

1. Power

AC 100~240V

AC100-240V, 50 / 60Hz, connect to AC power supply, built-infuse.
