Core switch quang 10/100/1000 48Gb, 24 cổng quang SFP (DATA)

Thông số kỹ thuật:

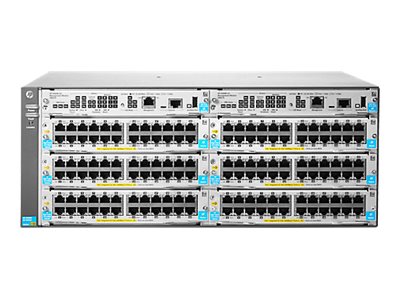

5406R zl2 Switch (J9821A):

• 6 open module slots
• Supports a maximum of 144 autosensing 10/100/1000 ports or 144 SFP ports or 48 SFP+ ports or 48 HPE Smart Rate Multi-Gigabit or 12 40GbE ports, or a combination
• Dual ARM Coretex A9 @ 1 GHz; Packet buffer size: 13.5 MB Internal
• ARM11 @ 450 MHz; Packet buffer size: 18 Mb internal
• Dual ARM Coretex A9 @ 1 GHz; Packet buffer size: 13.5 MB Internal
• ARM11 @ 550 MHz; Packet buffer size: 18 Mb internal
• Dual ARM Coretex A9 @ 1 GHz; Packet buffer size: 13.5 MB Internal
• Freescale P2020 dual core @ 1.2 GHz, 16 MB flash, 1 GB SD Card, 4 GB DDR3 SODIMM

• Performance

• 1000 Mb Latency: < 2.8 µs (FIFO 64-byte packets)
• 10 Gbps Latency: < 1.8 µs (FIFO 64-byte packets)
• 40 Gbps Latency: < 1.5 µs (FIFO 64-byte packets)
• Routing table size: 10000 entries (IPv4), 5000 entries (IPv6)
• MAC address table size: 64000 entries
• Throughput:
  • 5406R Switches: up to 571.4 Mpps
  • 5412R Switches: up to 1142.8 Mpps
• Routing/Switching capacity:
  • 5406R Switches: 960 Gbps
  • 5412R Switches: 1920 Gbps
• Switch fabric speed:
  • 5406R Switches: 1015 Gbps
  • 5412R Switches: 2030 Gbps
