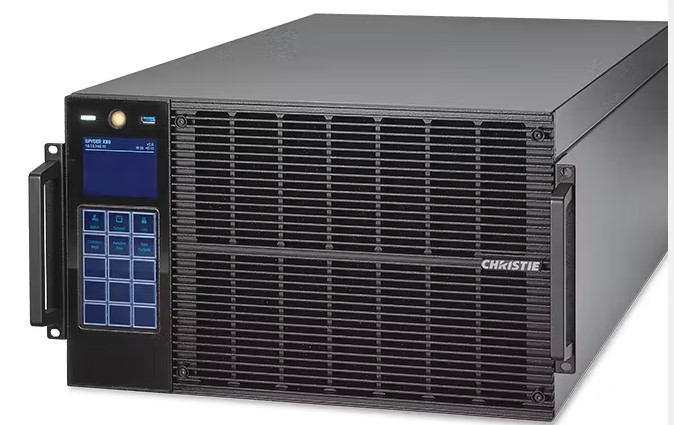

Bộ điều khiển hình ảnh Video Controllers CHRISTIE SPYDER X80

Bộ xử lý hình ảnh Video Controllers Christie Spyder X80:

Input number:

• Up to 6 input modules each with 4 inputs
• User may define the amount of modules required from 1 to 6

Input signals:

• Each input supports three connections
• DisplayPort 1.2, HDMI 2.0, 12G-SDI

Input resolutions:

• Horizontal up to 7680 (within pixel clock)
• Vertical up to 2400 (within pixel clock)
• Support for 8-/10-/12-bit depth

Input scan rates:

• Up to 120Hz dependent on pixel clock rate maximum

Output number:

• Up to 4 output cards each with four outputs
• User may define the amount of modules required from 1 to 4

Output signals:

• Each output supports three connections
• DisplayPort 1.2, HDMI 2.0, and 12G-SDI

Output resolutions:

• Horizontal up to 4096 (within pixel clock)
• Vertical up to 2400 (within pixel clock)

Control and networking:

• RS-232 in/out
• Ethernet (10/100/1000)

Enhanced features:

• - Independent aspect ratio and frame rate setup
• - Overlays
• - Transitions
• - Aspect ratio conversions
• - Integrated source monitoring
• - Output rotation (portrait)
• - Stereoscopic option for displaying stereo and non-stereo simultaneously *
• - HDCP 2.2 support

Warranty:

• Two years parts and labor
• Contact an authorized Christie representative for full details of our limited warranty

File Catolog:http://giaiphapmanhinh.com/img_data/files/christie-spyder-x80-brochure.pdf
